lp_solveをJavaから使う
環境
- Windows 7 Professional SP1 64ビット
- lp_solve 5.5.2.5
- Oracle Java SE 9.0.4
- Eclipse Oxygen.2 Release (4.7.2)
全体構成
Javaプログラム
↓
lp_solveのJavaラッパークラス (jar)
↓
lp_solveのJNIスタブモジュール (dll)
↓
lp_solve本体 (dll)
lp_solveをダウンロードする
http://lpsolve.sourceforge.net/
Choose an lp_solve version from the menu above.
lp_solve 5.5
lp_solve 5.5.2.5 index
Download
http://sourceforge.net/projects/lpsolve/
Files
lpsolve
5.5.2.5
lp_solve_5.5.2.5_dev_win64.zip 2016-09-24 1.3MB
→ライブラリ本体
lp_solve_5.5.2.5_exe_win64.zip 2016-09-24 938.0kB
→コマンドラインの実行ファイルとモデルの読み書きモジュール
lp_solve_5.5.2.5_java.zip 2016-09-24 471.1kB
→JavaのラッパークラスとJNIのスタブモジュール
distribution_5.5.2.5.htm 2016-09-24 29.9kB
→ダウンロードできるファイルの説明
lp_solveをインストールする
ライブラリ本体。
lp_solve_5.5.2.5_dev_win64.zip
|-lpsolve55.dll
モデルの読み書きモジュール。
lp_solve_5.5.2.5_exe_win64.zip
|-bfp_etaPFI.dll
|-bfp_GLPK.dll
|-bfp_LUSOL.dll
|-xli_CPLEX.dll
|-xli_DIMACS.dll
|-xli_LINDO.dll
|-xli_MathProg.dll
|-xli_XPRESS.dll
JavaのラッパークラスとJNIのスタブモジュール。
lp_solve_5.5.2.5_java.zip
|-lp_solve_5.5_java
|-lpsolve55j.jar
|-win64
|-lpsolve55j.dll
Pathの通った場所にDLLを置く。
D:\opt\lp_solve5.5.2.5
|-lpsolve55.dll
|
|-bfp_etaPFI.dll
|-bfp_GLPK.dll
|-bfp_LUSOL.dll
|-xli_CPLEX.dll
|-xli_DIMACS.dll
|-xli_LINDO.dll
|-xli_MathProg.dll
|-xli_XPRESS.dll
|
|-lpsolve55j.dll
環境変数のPathを設定する。

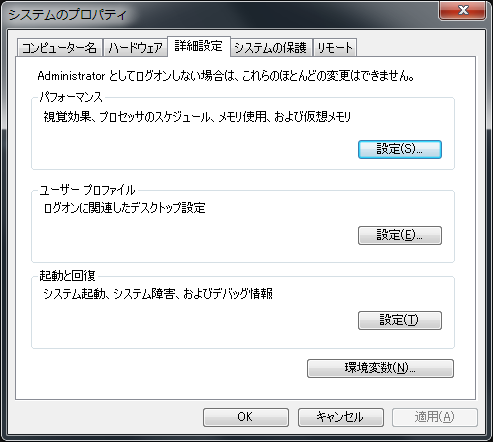

スタート > コントロールパネル > システムとセキュリティ > システム > システムの詳細設定 > システムのプロパティダイアログ > 詳細設定タブ > 環境変数ボタン > 環境変数ダイアログ > ユーザー環境変数

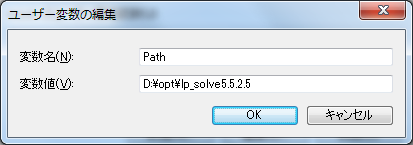

ユーザー環境変数のPathにDLLを置いた場所を追加する。既にPathが設定されている場合はセミコロンを付けて後ろに追加する。環境変数の設定後はEclipseを再起動しないと反映されない。
EclipseでJavaのプロジェクトを作成する
新しいプロジェクトを作成する。
New > Java Project
プロジェクトにlibフォルダを追加してJavaのラッパークラスのJARファイルを配置する。

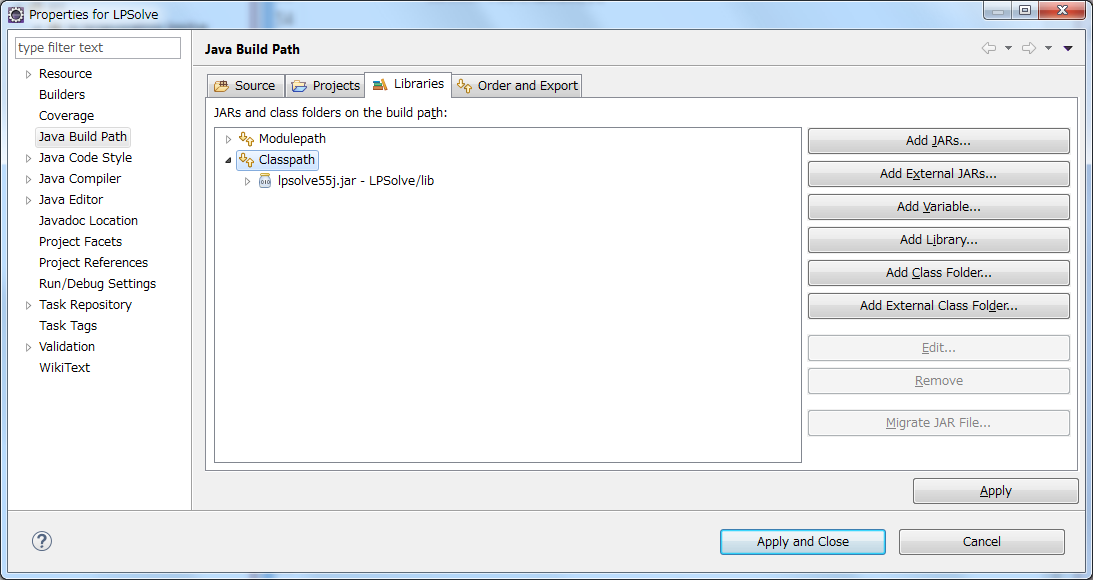

プロジェクトのクラスパスにJavaのラッパークラスのJARを追加する。
Project > Properties > Java Build Path > Libraries > Classpass > Add JARs...
lp_solveのAPIリファレンスを参考にしてコードを実行する。
package jp.largevocalmix.lpsolve;
import lpsolve.LpSolve;
import lpsolve.LpSolveException;
public class LPSolveMain {
public static void main(String[] args) {
try {
final int VARIABLE_COUNT = 3;
final int CONSTRAINT_COUNT = 4;
//Create a problem with 3 variables and 4 constraints
//
//http://lpsolve.sourceforge.net/5.5/make_lp.htm
//lprec *make_lp(int rows, int columns);
LpSolve solver = LpSolve.makeLp(CONSTRAINT_COUNT, VARIABLE_COUNT);
//set objective function
//
//http://lpsolve.sourceforge.net/5.5/set_obj_fn.htm
//Note that for set_obj_fn (and set_obj_fnex when colno is NULL) element 0 of the array is not considered (i.e. ignored).
//Column 1 is element 1, column 2 is element 2, ...
double[] objectFunction = new double[1 + VARIABLE_COUNT];
objectFunction[1] = 120;
objectFunction[2] = 190;
objectFunction[3] = 180;
solver.setObjFn(objectFunction);
//http://lpsolve.sourceforge.net/5.5/set_maxim.htm
//The set_maxim function sets the objective direction to maximize.
//The default of lp_solve is to minimize, except for read_lp, read_LP where the default is to maximize.
solver.setMaxim();
//add constraints
//
//http://lpsolve.sourceforge.net/5.5/add_constraint.htm
//Note that for add_constraint (and add_constraintex when colno is NULL) element 0 of the array is not considered (i.e. ignored).
//Column 1 is element 1, column 2 is element 2, ...
//
//Note that these routines will perform much better when set_add_rowmode is called before adding constraints.
solver.setAddRowmode(true);
double[] constraints = new double[1 + VARIABLE_COUNT];
constraints[1] = 0.3;
constraints[2] = 0.3;
constraints[3] = 0.3;
solver.addConstraint(constraints, LpSolve.LE, 800);
constraints = new double[1 + VARIABLE_COUNT];
constraints[1] = 0.25;
constraints[2] = 0.5;
constraints[3] = 0.45;
solver.addConstraint(constraints, LpSolve.LE, 800);
constraints = new double[1 + VARIABLE_COUNT];
constraints[1] = 0.3;
constraints[2] = 0.0;
constraints[3] = 0.0;
solver.addConstraint(constraints, LpSolve.LE, 570);
constraints = new double[1 + VARIABLE_COUNT];
constraints[1] = 0.0;
constraints[2] = 0.6;
constraints[3] = 0.5;
solver.addConstraint(constraints, LpSolve.LE, 840);
solver.setAddRowmode(false);
//solve the problem
solver.solve();
//print solution
System.out.println("Value of objective function: " + solver.getObjective());
double[] var = solver.getPtrVariables();
for (int i = 0; i < var.length; i++) {
System.out.println("Value of var[" + i + "] = " + var[i]);
}
//delete the problem and free memory
solver.deleteLp();
}
catch (LpSolveException e) {
e.printStackTrace();
}
}
}
実行結果。
Value of objective function: 358000.0
Value of var[0] = 1900.0
Value of var[1] = 0.0
Value of var[2] = 722.2222222222223
Model name: '' - run #1
Objective: Maximize(R0)
SUBMITTED
Model size: 8 constraints, 3 variables, 9 non-zeros.
Sets: 0 GUB, 0 SOS.
Using DUAL simplex for phase 1 and PRIMAL simplex for phase 2.
The primal and dual simplex pricing strategy set to 'Devex'.
Optimal solution 358000 after 4 iter.
Relative numeric accuracy ||*|| = 0
MEMO: lp_solve version 5.5.2.5 for 64 bit OS, with 64 bit REAL variables.
In the total iteration count 4, 0 (0.0%) were bound flips.
There were 0 refactorizations, 0 triggered by time and 0 by density.
... on average 4.0 major pivots per refactorization.
The largest [LUSOL v2.2.1.0] fact(B) had 9 NZ entries, 1.0x largest basis.
The constraint matrix inf-norm is 0.6, with a dynamic range of 2.4.
Time to load data was 0.000 seconds, presolve used 0.001 seconds,
... 0.002 seconds in simplex solver, in total 0.003 seconds.
- 参考情報
-
lp_solve 5.5.2.5 index > Using lpsolve from Java > Using lp_solve 5.5 in Java programs
